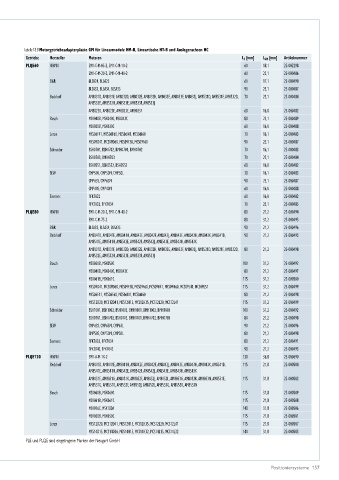

Tabelle 18.8 Motorgetriebeadapterplatte GM für Linearmodule HM-B, Lineartische HT-B und Auslegerachsen HC
Getriebe Hersteller Motoren L F [mm] L GM [mm] Artikelnummer
PLQE60 HIWIN EM1-C-M-05-2, EM1-C-M-10-2 60 18,1 25-002298
EM1-C-M-20-2, EM1-C-M-40-2 60 23,1 25-000486
B&R 8LSA24, 8LSA25 60 17,1 25-000490
8LSA33, 8LSA34, 8LSA35 90 23,1 25-000487
Beckhoff AM8031D, AM8031F, AM8032D, AM8032E, AM8032H, AM8033E, AM8033F, AM8033J, AM8531D, AM8531F, AM8532D, 70 23,1 25-000484
AM8532E, AM8532H, AM8533E, AM8533F, AM8533J
AM8022D, AM8022E, AM8023E, AM8023F 60 16,0 25-000482
Bosch MSK040B, MSK040C, MSK043C 80 23,1 25-000489
MSK030B, MSK030C 60 16,0 25-000488
Lenze MCS06F41, MCS06F60, MCS06I41, MCS06I60 70 16,1 25-000483
MCS09D41, MCS09D60, MCS09F38, MCS09F60 90 23,1 25-000487
Schneider BSH0701, BSH0702, BMH0701, BMH0702 70 16,1 25-000483
BSH0703, BMH0703 70 23,1 25-000484
BSH0551, BSH0552, BSH0553 60 16,0 25-000482
SEW CMP50S, CMP50M, CMP50L 70 16,1 25-000483
CMP63S, CMP63M 90 23,1 25-000487
CMP40S, CMP40M 60 16,0 25-000488
Siemens 1FK7022 60 16,0 25-000482
1FK7032, 1FK7034 70 23,1 25-000485
PLQE80 HIWIN EM1-C-M-20-2, EM1-C-M-40-2 80 21,2 25-000494
EM1-C-M-75-2 80 31,2 25-000495
B&R 8LSA33, 8LSA34, 8LSA35 90 21,2 25-000496
Beckhoff AM8041D, AM8041E, AM8041H, AM8042E, AM8042F, AM8042J, AM8043E, AM8043H, AM8043K, AM8541D, 90 21,2 25-000493
AM8541E, AM8541H, AM8542E, AM8542F, AM8542J, AM8543E, AM8543H, AM8543K
AM8031D, AM8031F, AM8032D, AM8032E, AM8032H, AM8033E, AM8033F, AM8033J, AM8531D, AM8531F, AM8532D, 80 21,2 25-000498
AM8532E, AM8532H, AM8533E, AM8533F, AM8533J
Bosch MSK050B, MSK050C 100 31,2 25-000492
MSK040B, MSK040C, MSK043C 80 21,2 25-000497
MSK061B, MSK061C 115 31,2 25-000500
Lenze MCS09D41, MCS09D60, MCS09F38, MCS09F60, MCS09H41, MCS09H60, MCS09L41, MCS09L51 115 31,2 25-000499
MCS06F41, MCS06F60, MCS06I41, MCS06I60 80 21,2 25-000498
MCS12D20, MCS12D41, MCS12H15, MCS12H35, MCS12L20, MCS12L41 115 31,2 25-000499
Schneider BSH1001, BSH1002, BSH1003, BMH1001, BMH1002, BMH1003 100 31,2 25-000492
BSH0701, BSH0702, BSH0703, BMH0701, BMH0702, BMH0703 80 21,2 25-000498
SEW CMP63S, CMP63M, CMP63L 90 21,2 25-000496
CMP50S, CMP50M, CMP50L 80 21,2 25-000498
Siemens 1FK7032, 1FK7034 80 21,2 25-000491
1FK7040, 1FK7042 90 21,2 25-000493
PLQE120 HIWIN EM1-A-M-1K-2 130 36,8 25-000690
Beckhoff AM8041D, AM8041E, AM8041H, AM8042E, AM8042F, AM8042J, AM8043E, AM8043H, AM8043K, AM8541D, 115 21,8 25-000504
AM8541E, AM8541H, AM8542E, AM8542F, AM8542J, AM8543E, AM8543H, AM8543K
AM8051E, AM8051G, AM8051K, AM8052F, AM8052J, AM8052L, AM8053G, AM8053K, AM8053N, AM8551E, 115 31,8 25-000502
AM8551G, AM8551K, AM8552F, AM8552J, AM8552L, AM8553G, AM8553K, AM8553N
Bosch MSK060B, MSK060C 115 31,8 25-000509
MSK061B, MSK061C 115 21,8 25-000508
MSK076C, MSK100A 140 31,8 25-000506
MSK050B, MSK050C 115 21,8 25-000501
Lenze MCS12D20, MCS12D41, MCS12H15, MCS12H35, MCS12L20, MCS12L41 115 21,8 25-000507
MCS14D15, MCS14D36, MCS14H15, MCS14H32, MCS14L15, MCS14L32 140 31,8 25-000503
PLE und PLQE sind eingetragene Marken der Neugart GmbH
