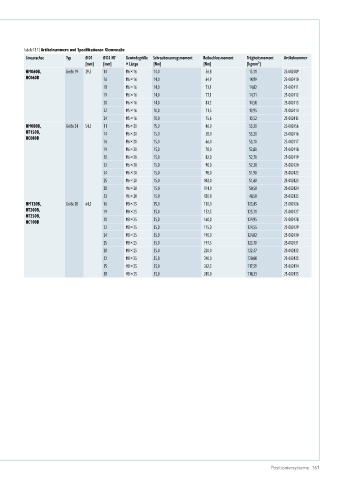

Tabelle 18.12 Artikelnummern und Spezifikationen Klemmnabe
Linearachse Typ Ø D1 Ø D2 H7 Gewindegröße Schraubenanzugsmoment Reibschlussmoment Trägheitsmoment Artikelnummer
2
[mm] [mm] × Länge [Nm] [Nm] [kgmm ]
HM060B, Größe 19 39,5 14 M6 × 16 14,0 56,8 15,11 25-002409
HC060B 16 M6 × 16 14,0 64,9 14,99 25-002410
18 M6 × 16 14,0 73,1 14,82 25-002411
19 M6 × 16 14,0 77,1 14,71 25-002412
20 M6 × 16 14,0 81,2 14,58 25-002413
22 M5 × 16 10,0 71,5 13,95 25-002414
24 M5 × 16 10,0 75,6 13,52 25-002415
HM080B, Größe 24 54,5 11 M6 × 20 15,0 46,0 53,30 25-002456
HT150B, 14 M6 × 20 15,0 58,0 53,20 25-002416
HC080B
16 M6 × 20 15,0 66,0 53,10 25-002417
19 M6 × 20 15,0 78,0 52,80 25-002418
20 M6 × 20 15,0 82,0 52,70 25-002419
22 M6 × 20 15,0 90,0 52,30 25-002420
24 M6 × 20 15,0 98,0 51,90 25-002422
25 M6 × 20 15,0 102,0 51,60 25-002423
28 M6 × 20 15,0 114,0 50,50 25-002424
32 M6 × 20 15,0 130,0 48,50 25-002425
HM120B, Größe 28 64,5 16 M8 × 25 35,0 130,0 125,45 25-002426
HT200B, 19 M8 × 25 35,0 152,5 125,11 25-002427
HT250B,
HC100B 20 M8 × 25 35,0 160,0 124,95 25-002428
22 M8 × 25 35,0 175,0 124,55 25-002429
24 M8 × 25 35,0 190,0 124,02 25-002430
25 M8 × 25 35,0 197,5 123,70 25-002431
28 M8 × 25 35,0 220,0 122,47 25-002432
32 M8 × 25 35,0 240,0 120,08 25-002433
35 M8 × 25 35,0 262,5 117,59 25-002434
38 M8 × 25 35,0 285,0 118,33 25-002435
