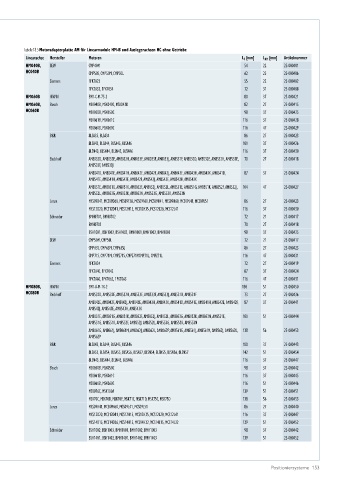

Tabelle 18.5 Motoradapterplatte AM für Linearmodule HM-B und Auslegerachsen HC ohne Getriebe
Linearachse Hersteller Motoren L F [mm] L AM [mm] Artikelnummer
HM040B, SEW CMP40M 54 22 25-000401
HC040B CMP50S, CMP50M, CMP50L 62 25 25-000406
Siemens 1FK7022 55 22 25-000402
1FK7032, 1FK7034 72 31 25-000408
HM060B HIWIN EM1-C-M-75-2 80 37 25-000421
HM060B, Bosch MSK040B, MSK040C, MSK043B 82 27 25-000415
HC060B MSK050B, MSK050C 98 37 25-000425
MSK061B, MSK061C 116 37 25-000428
MSK060B, MSK060C 116 47 25-000429
B&R 8LSA35, 8LSA34 86 27 25-000423
8LSA43, 8LSA44, 8LSA45, 8LSA46 100 37 25-000426
8LSN43, 8LSN44, 8LSN45, 8LSN46 116 37 25-000430
Beckhoff AM8032D, AM8032E, AM8032H, AM8033E, AM8033F, AM8033J, AM8531F, AM8532D, AM8532E, AM8532H, AM8533E, 70 27 25-000418
AM8533F, AM8533J
AM8041D, AM8041E, AM8041H, AM8042E, AM8042F, AM8042J, AM8043E, AM8043H, AM8043K, AM8541D, 87 37 25-000424
AM8541E, AM8541H, AM8542E, AM8542F, AM8542J, AM8543E, AM8543H, AM8543K
AM8051E, AM8051G, AM8051K, AM8052F, AM8052J, AM8052L, AM8551E, AM8551G, AM8551K, AM8552F, AM8552J, 104 47 25-000427
AM8552L, AM8053G, AM8053K, AM8053N, AM8553G, AM8553K, AM8553N
Lenze MCS09D41, MCS09D60, MCS09F38, MCS09F60, MCS09H41, MCS09H60, MCS09L41, MCS09L51 86 27 25-000423
MCS12D20, MCS12D41, MCS12H15, MCS12H35, MCS12L20, MCS12L41 116 37 25-000430
Schneider BMH0701, BMH0702 72 21 25-000417
BMH0703 70 27 25-000418
BSH1001, BSH1002, BSH1003, BMH1001, BMH1002, BMH1003 98 37 25-000425
SEW CMP50M, CMP50L 72 21 25-000417
CMP63S, CMP63M, CMP63SL 86 27 25-000423
CMP71S, CMP71M, CMPZ71S, CMPZ71MCMP71L, CMPZ71L 116 47 25-000431
Siemens 1FK7034 72 27 25-000419
1FK7040, 1FK7042 87 37 25-000424
1FK7060, 1FK7062, 1FK7063 116 47 25-000431
HM080B, HIWIN EM1-A-M-1K-2 130 51 25-000450
HC080B Beckhoff AM8532D, AM8532E, AM8532H, AM8533E, AM8533F, AM8533J, AM8531D, AM8531F 73 27 25-000436

AM8042E, AM8042F, AM8042J, AM8043E, AM8043H, AM8043K, AM8541D, AM8541E, AM8541H, AM8542E, AM8542F, 87 37 25-000441
AM8542J, AM8543E, AM8543H, AM8543K
AM8051E, AM8051G, AM8051K, AM8052F, AM8052J, AM8052L, AM8053G, AM8053K, AM8053N, AM8551E, 100 51 25-000444
AM8551G, AM8551K, AM8552F, AM8552J, AM8552L, AM8553G, AM8553K, AM8553N
AM8061G, AM8061J, AM8061M, AM8062J, AM8062L, AM8062P, AM8561G, AM8561J, AM8561M, AM8562J, AM8562L, 138 56 25-000453
AM8562P
B&R 8LSA43, 8LSA44, 8LSA45, 8LSA46 100 37 25-000443
8LSA53, 8LSA54, 8LSA55, 8LSA56, 8LSA57, 8LSN54, 8LSN55, 8LSN56, 8LSN57 142 51 25-000454
8LSN43, 8LSN44, 8LSN45, 8LSN46 116 37 25-000447
Bosch MSK050B, MSK050C 98 37 25-000442
MSK061B, MSK061C 116 37 25-000445
MSK060B, MSK060C 116 51 25-000446
MSK076C, MSK100A 139 51 25-000451
MSK70C, MSK70D, MSK70E, MSK71C, MSK71D, MSK75C, MSK75D 138 56 25-000453
Lenze MCS09H41, MCS09H60, MCS09L41, MCS09L51 86 27 25-000440
MCS12D20, MCS12D41, MCS12H15, MCS12H35, MCS12L20, MCS12L41 116 37 25-000447
MCS14D15, MCS14D36, MCS14H15, MCS14H32, MCS14L15, MCS14L32 139 51 25-000452
Schneider BSH1002, BSH1003, BMH1001, BMH1002, BMH1003 98 37 25-000442
BSH1401, BSH1402, BMH1401, BMH1402, BMH1403 139 51 25-000452
