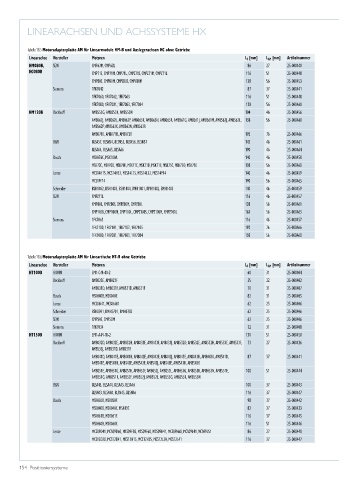

LINEARACHSEN UND ACHSSYSTEME HX

Tabelle 18.5 Motoradapterplatte AM für Linearmodule HM-B und Auslegerachsen HC ohne Getriebe
Linearachse Hersteller Motoren L F [mm] L AM [mm] Artikelnummer
HM080B, SEW CMP63M, CMP63L 86 27 25-000440
HC080B CMP71S, CMP71M, CMP71L, CMPZ71S, CMPZ71M, CMPZ71L 116 51 25-000448
CMP80S, CMP80M, CMPZ80S, CMPZ80M 138 56 25-000453
Siemens 1FK7042 87 37 25-000441
1FK7060, 1FK7062, 1FK7063 116 51 25-000448
1FK7080, 1FK7081, 1FK7083, 1FK7084 138 56 25-000460
HM120B Beckhoff AM8553G, AM8553K, AM8553N 104 46 25-000456
AM8062J, AM8062L, AM8062P, AM8063K, AM8063N, AM8063R, AM8561G, AM8561J, AM8561M, AM8562J, AM8562L, 138 56 25-000460
AM8562P, AM8563K, AM8563N, AM8563R
AM8071K, AM8071R, AM8072T 192 76 25-000466
B&R 8LSA57, 8LSN54, 8LSN55, 8LSN56, 8LSN57 142 46 25-000461
8LSA64, 8LSA65, 8LSA66 190 46 25-000464
Bosch MSK076C, MSK100A 140 46 25-000458
MSK70C, MSK70D, MSK70E, MSK71C, MSK71D, MSK71E, MSK75C, MSK75D, MSK75E 138 56 25-000460
Lenze MCS14H15, MCS14H32, MCS14L15, MCS14L32, MCS14P14 140 46 25-000459
MCS19F14 190 56 25-000465
Schneider BSH1402, BSH1403, BSH1404, BMH1401, BMH1402, BMH1403 140 46 25-000459
SEW CMPZ71L 116 46 25-000457
CMP80L, CMPZ80S, CMPZ80M, CMPZ80L 138 56 25-000460
CMP100S, CMP100M, CMP100L, CMPZ100S, CMPZ100M, CMPZ100L 163 56 25-000463
Siemens 1FK7063 116 46 25-000457
1FK7100, 1FK7101, 1FK7103, 1FK7105 192 76 25-000466
1FK7080, 1FK7081, 1FK7083, 1FK7084 138 56 25-000460

Tabelle 18.6 Motoradapterplatte AM für Lineartische HT-B ohne Getriebe
Linearachse Hersteller Motoren L F [mm] L AM [mm] Artikelnummer
HT100B HIWIN EM1-C-M-40-2 60 31 25-000404
Beckhoff AM8023E, AM8023F 55 22 25-000402
AM8031D, AM8031F, AM8531D, AM8531F 70 31 25-000407
Bosch MSK040B, MSK040C 82 31 25-000405
Lenze MCS06I41, MCS06I60 62 25 25-000406
Schneider BSH0701, BMH0701, BMH0702 62 25 25-000406
SEW CMP50S, CMP50M 62 25 25-000406
Siemens 1FK7034 72 31 25-000408
HT150B HIWIN EM1-A-M-1K-2 130 51 25-000450
Beckhoff AM8032D, AM8032E, AM8032H, AM8033E, AM8033F, AM8033J, AM8532D, AM8532E, AM8532H, AM8533E, AM8533F, 73 27 25-000436
AM8533J, AM8531D, AM8531F
AM8041D, AM8041E, AM8041H, AM8042E, AM8042F, AM8042J, AM8043E, AM8043H, AM8043K, AM8541D, 87 37 25-000441
AM8541E, AM8541H, AM8542E, AM8542F, AM8542J, AM8543E, AM8543H, AM8543K
AM8051E, AM8051G, AM8051K, AM8052F, AM8052J, AM8052L, AM8053G, AM8053K, AM8053N, AM8551E, 100 51 25-000444
AM8551G, AM8551K, AM8552F, AM8552J, AM8552L, AM8553G, AM8553K, AM8553N
B&R 8LSA43, 8LSA44, 8LSA45, 8LSA46 100 37 25-000443
8LSN43, 8LSN44, 8LSN45, 8LSN46 116 37 25-000447
Bosch MSK050B, MSK050C 98 37 25-000442
MSK040B, MSK040C, MSK43C 82 27 25-000433
MSK061B, MSK061C 116 37 25-000445
MSK060B, MSK060C 116 51 25-000446
Lenze MCS09D41, MCS09D60, MCS09F38, MCS09F60, MCS09H41, MCS09H60, MCS09L41, MCS09L51 86 27 25-000440
MCS12D20, MCS12D41, MCS12H15, MCS12H35, MCS12L20, MCS12L41 116 37 25-000447
