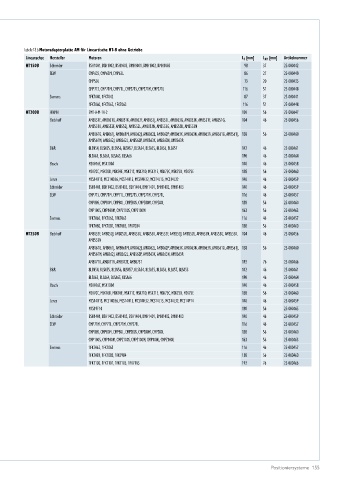

Tabelle 18.6 Motoradapterplatte AM für Lineartische HT-B ohne Getriebe
Linearachse Hersteller Motoren L F [mm] L AM [mm] Artikelnummer
HT150B Schneider BSH1001, BSH1002, BSH1003, BMH1001, BMH1002, BMH1003 98 37 25-000442
SEW CMP63S, CMP63M, CMP63L 86 27 25-000440
CMP50L 73 20 25-000435
CMP71S, CMP71M, CMP71L, CMPZ71S, CMPZ71M, CMPZ71L 116 51 25-000448
Siemens 1FK7040, 1FK7042 87 37 25-000441
1FK7060, 1FK7062, 1FK7063 116 51 25-000448
HT200B HIWIN EM1-A-M-1K-2 130 56 25-000647
Beckhoff AM8051E, AM8051G, AM8051K, AM8052F, AM8052J, AM8052L, AM8053G, AM8053K, AM8551E, AM8551G, 104 46 25-000456
AM8551K, AM8552F, AM8552J, AM8552L, AM8053N, AM8553G, AM8553K, AM8553N
AM8061G, AM8061J, AM8061M, AM8062J, AM8062L, AM8062P, AM8063K, AM8063N, AM8063R, AM8561G, AM8561J, 138 56 25-000460
AM8561M, AM8562J, AM8562L, AM8562P, AM8563K, AM8563N, AM8563R
B&R 8LSN54, 8LSN55, 8LSN56, 8LSN57, 8LSA54, 8LSA55, 8LSA56, 8LSA57 142 46 25-000461
8LSA63, 8LSA64, 8LSA65, 8LSA66 190 46 25-000464
Bosch MSK076C, MSK100A 140 46 25-000458
MSK70C, MSK70D, MSK70E, MSK71C, MSK71D, MSK71E, MSK75C, MSK75D, MSK75E 138 56 25-000460
Lenze MCS14D15, MCS14D36, MCS14H15, MCS14H32, MCS14L15, MCS14L32 140 46 25-000459
Schneider BSH1401, BSH1402, BSH1403, BSH1404, BMH1401, BMH1402, BMH1403 140 46 25-000459
SEW CMP71S, CMP71M, CMP71L, CMPZ71S, CMPZ71M, CMPZ71L 116 46 25-000457
CMP80S, CMP80M, CMP80L, CMPZ80S, CMPZ80M, CMPZ80L 138 56 25-000460
CMP100S, CMP100M, CMPZ100S, CMPZ100M 163 56 25-000463
Siemens 1FK7060, 1FK7062, 1FK7063 116 46 25-000457
1FK7080, 1FK7081, 1FK7083, 1FK7084 138 56 25-000460
HT250B Beckhoff AM8052F, AM8052J, AM8052L, AM8053G, AM8053K, AM8552F, AM8552J, AM8552L, AM8053N, AM8553G, AM8553K, 104 46 25-000456
AM8553N
AM8061G, AM8061J, AM8061M, AM8062J, AM8062L, AM8062P, AM8063K, AM8063N, AM8063R, AM8561G, AM8561J, 138 56 25-000460
AM8561M, AM8562J, AM8562L, AM8562P, AM8563K, AM8563N, AM8563R
AM8071K, AM8071R, AM8072T, AM8073T 192 76 25-000466
B&R 8LSN54, 8LSN55, 8LSN56, 8LSN57, 8LSA54, 8LSA55, 8LSA56, 8LSA57, 8LSA53 142 46 25-000461
8LSA63, 8LSA64, 8LSA65, 8LSA66 190 46 25-000464
Bosch MSK076C, MSK100A 140 46 25-000458
MSK70C, MSK70D, MSK70E, MSK71C, MSK71D, MSK71E, MSK75C, MSK75D, MSK75E 138 56 25-000460
Lenze MCS14D15, MCS14D36, MCS14H15, MCS14H32, MCS14L15, MCS14L32, MCS14P14 140 46 25-000459
MCS19F14 190 56 25-000465
Schneider BSH1401, BSH1402, BSH1403, BSH1404, BMH1401, BMH1402, BMH1403 140 46 25-000459
SEW CMP71M, CMP71L, CMPZ71M, CMPZ71L 116 46 25-000457
CMP80S, CMP80M, CMP80L, CMPZ80S, CMPZ80M, CMPZ80L 138 56 25-000460
CMP100S, CMP100M, CMPZ100S, CMPZ100M, CMP100L, CMPZ100L 163 56 25-000463
Siemens 1FK7062, 1FK7063 116 46 25-000457
1FK7081, 1FK7083, 1FK7984 138 56 25-000460
1FK7100, 1FK7101, 1FK7103, 1FK7105 192 76 25-000466
