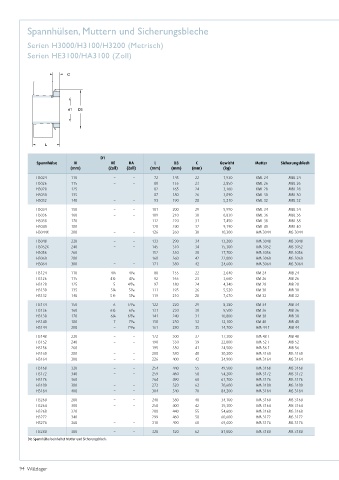

Page 94 - Wälzlager

Spannhülsen, Muttern und Sicherungsbleche

Serien H3000/H3100/H3200 (Metrisch)
Serien He3100/Ha3100 (zoll)

C

d1 D3

L

D1
Spannhülse H HE HA L D3 C Gewicht Mutter Sicherungsblech
(mm) (Zoll) (Zoll) (mm) (mm) (mm) (kg)
H3024 110 – – 72 145 22 1,930 KML 24 MBL 24
H3026 115 – – 80 155 23 2,850 KML 26 MBL 26
H3028 125 – – 82 165 24 3,160 KML 28 MBL 28
H3030 135 – – 87 180 26 3,890 KML 30 MBL 30
H3032 140 – – 93 190 28 5,210 KML 32 MBL 32
H3034 150 – – 101 200 29 5,990 KML 34 MBL 34
H3036 160 – – 109 210 30 6,830 KML 36 MBL 36
H3038 170 – – 112 220 31 7,450 KML 38 MBL 38
H3040 180 – – 120 240 32 9,190 KML 40 MBL 40
H3044X 200 – – 126 260 30 10,300 HM 3044 MS 3044
H3048 220 – – 133 290 34 13,200 HM 3048 MS 3048
H3052X 240 – – 145 310 34 15,300 HM 3052 MS 3052
H3056 260 – – 152 330 38 17,700 HM 3056 MS 3056
H3060 280 – – 168 360 42 22,800 HM 3060 MS 3060
H3064 300 – – 171 380 42 24,600 HM 3064 MS 3064
H3124 110 4 1 ⁄4 4 3 ⁄16 88 155 22 2,640 KM 24 MB 24
H3126 115 4 1 ⁄2 4 7 ⁄16 92 165 23 3,660 KM 26 MB 26
H3128 125 5 4 15 ⁄16 97 180 24 4,340 KM 28 MB 28
H3130 135 5 1 ⁄4 5 3 ⁄16 111 195 26 5,520 KM 30 MB 30
H3132 140 5 1 ⁄2 5 7 ⁄16 119 210 28 7,670 KM 32 MB 32
H3134 150 6 5 15 ⁄16 122 220 29 8,380 KM 34 MB 34
H3136 160 6 1 ⁄2 6 7 ⁄16 131 230 30 9,500 KM 36 MB 36
H3138 170 6 3 ⁄4 6 15 ⁄16 141 240 31 10,800 KM 38 MB 38
H3140 180 7 7 3 ⁄16 150 250 32 12,100 KM 40 MB 40
H3144 200 – 7 15 ⁄16 161 280 35 14,700 HM 44 T MB 44
H3148 220 – – 172 300 37 17,300 HM 48 T MB 48
H3152 240 – – 190 330 39 22,000 HM 52 T MB 52
H3156 260 – – 195 350 41 24,500 HM 56 T MB 56
H3160 280 – – 208 380 40 30,200 HM 3160 MS 3160
H3164 300 – – 226 400 42 34,900 HM 3164 MS 3164
H3168 320 – – 254 440 55 49,500 HM 3168 MS 3168
H3172 340 – – 259 460 58 54,200 HM 3172 MS 3172
H3176 360 – – 264 490 60 61,700 HM 3176 MS 3176
H3180 380 – – 272 520 62 70,600 HM 3180 MS 3180
H3184 400 – – 304 540 70 84,200 HM 3184 MS 3184
H3260 280 – – 240 380 40 34,100 HM 3160 MS 3160
H3264 300 – – 258 400 42 39,300 HM 3164 MS 3164
H3268 320 – – 288 440 55 54,600 HM 3168 MS 3168
H3272 340 – – 299 460 58 60,600 HM 3172 MS 3172
H3276 360 – – 310 490 60 69,600 HM 3176 MS 3176
H3280 380 – – 328 520 62 81,000 HM 3180 MS 3180
Die Spannhülse beinhaltet Mutter und Sicherungsblech.
