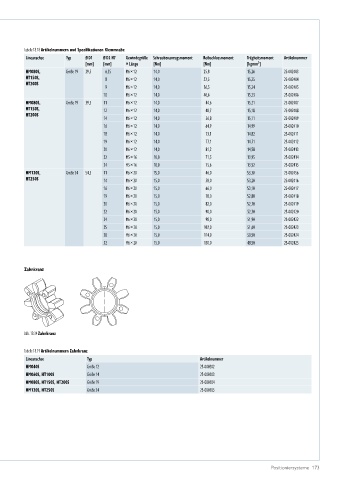

Page 173 - Positioniersysteme

Tabelle 18.18 Artikelnummern und Spezifikationen Klemmnabe
Linearachse Typ Ø D1 Ø D2 H7 Gewindegröße Schraubenanzugsmoment Reibschlussmoment Trägheitsmoment Artikelnummer
[mm] [mm] × Länge [Nm] [Nm] [kgmm ]
2
HM080S, Größe 19 39,5 6,35 M6 × 12 14,0 25,8 15,26 25-002403
HT150S, 8 M6 × 12 14,0 32,5 15,25 25-002404
HT200S
9 M6 × 12 14,0 36,5 15,24 25-002405
10 M6 × 12 14,0 40,6 15,23 25-002406
HM080S, Größe 19 39,5 11 M6 × 12 14,0 44,6 15,21 25-002407
HT150S, 12 M6 × 12 14,0 48,7 15,18 25-002408
HT200S
14 M6 × 12 14,0 56,8 15,11 25-002409
16 M6 × 12 14,0 64,9 14,99 25-002410
18 M6 × 12 14,0 73,1 14,82 25-002411
19 M6 × 12 14,0 77,1 14,71 25-002412
20 M6 × 12 14,0 81,2 14,58 25-002413
22 M5 × 16 10,0 71,5 13,95 25-002414
24 M5 × 16 10,0 75,6 13,52 25-002415
HM120S, Größe 24 54,5 11 M6 × 20 15,0 46,0 53,30 25-002456
HT250S 14 M6 × 20 15,0 58,0 53,20 25-002416
16 M6 × 20 15,0 66,0 53,10 25-002417
19 M6 × 20 15,0 78,0 52,80 25-002418
20 M6 × 20 15,0 82,0 52,70 25-002419
22 M6 × 20 15,0 90,0 52,30 25-002420
24 M6 × 20 15,0 98,0 51,90 25-002422
25 M6 × 20 15,0 102,0 51,60 25-002423
28 M6 × 20 15,0 114,0 50,50 25-002424
32 M6 × 20 15,0 130,0 48,50 25-002425

Zahnkranz

Abb. 18.34 Zahnkranz

Tabelle 18.19 Artikelnummern Zahnkranz
Linearachse Typ Artikelnummer
HM040S Größe 12 25-000202
HM060S, HT100S Größe 14 25-000203
HM080S, HT150S, HT200S Größe 19 25-000204
HM120S, HT250S Größe 24 25-000205

Positioniersysteme 173
