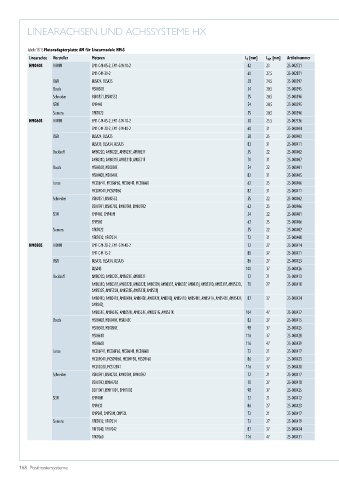

Page 168 - Positioniersysteme

LINEARACHSEN UND ACHSSYSTEME HX

Tabelle 18.15 Motoradapterplatte AM für Linearmodule HM-S
Linearachse Hersteller Motoren L F [mm] L AM [mm] Artikelnummer
HM040S HIWIN EM1-C-M-05-2, EM1-C-M-10-2 42 23 25-002721
EM1-C-M-20-2 60 27,5 25-002871
B&R 8LSA24, 8LSA25 58 24,5 25-000397
Bosch MSK030B 54 20,5 25-000395
Schneider BSH0551, BSH0552 55 20,5 25-000396
SEW CMP40S 54 20,5 25-000395
Siemens 1FK7022 55 20,5 25-000396
HM060S HIWIN EM1-C-M-05-2, EM1-C-M-10-2 50 25,5 25-002736
EM1-C-M-20-2, EM1-C-M-40-2 60 31 25-000404
B&R 8LSA24, 8LSA25 58 25 25-000403
8LSA33, 8LSA34, 8LSA35 82 31 25-000411
Beckhoff AM8022D, AM8022E, AM8023E, AM8023F 55 22 25-000402
AM8031D, AM8031F, AM8531D, AM8531F 70 31 25-000407
Bosch MSK030B, MSK030C 54 22 25-000401
MSK040B, MSK040C 82 31 25-000405
Lenze MCS06F41, MCS06F60, MCS06I41, MCS06I60 62 25 25-000406
MCS09D41, MCS09D60 82 31 25-000411
Schneider BSH0551, BSH0552 55 22 25-000402
BSH0701, BSH0702, BMH0701, BMH0702 62 25 25-000406
SEW CMP40S, CMP40M 54 22 25-000401
CMP50S 62 25 25-000406
Siemens 1FK7022 55 22 25-000402
1FK7032, 1FK7034 72 31 25-000408
HM080S HIWIN EM1-C-M-20-2, EM1-C-M-40-2 72 27 25-000414
EM1-C-M-75-2 80 37 25-000421
B&R 8LSA33, 8LSA34, 8LSA35 86 27 25-000423
8LSA43 100 37 25-000426
Beckhoff AM8022D, AM8022E, AM8023E, AM8023F 72 21 25-000413
AM8031D, AM8031F, AM8032D, AM8032E, AM8032H, AM8033E, AM8033F, AM8033J, AM8531D, AM8531F, AM8532D, 70 27 25-000418
AM8532E, AM8532H, AM8533E, AM8533F, AM8533J
AM8041D, AM8041E, AM8041H, AM8042E, AM8042F, AM8042J, AM8541D, AM8541E, AM8541H, AM8542E, AM8542F, 87 37 25-000424
AM8542J,
AM8051E, AM8051G, AM8051K, AM8551E, AM8551G, AM8551K 104 47 25-000427
Bosch MSK040B, MSK040C, MSK043C 82 27 25-000415
MSK050B, MSK050C 98 37 25-000425
MSK061B 116 37 25-000428
MSK060B 116 47 25-000429
Lenze MCS06F41, MCS06F60, MCS06I41, MCS06I60 72 21 25-000417
MCS09D41, MCS09D60, MCS09F38, MCS09F60 86 27 25-000423
MCS12D20, MCS12D41 116 37 25-000430
Schneider BSH0701, BSH0702, BMH0701, BMH0702 72 21 25-000417
BSH0703, BMH0703 70 27 25-000418
BSH1001, BMH1001, BMH1002 98 37 25-000425
SEW CMP40M 72 21 25-000412
CMP63S 86 27 25-000423
CMP50S, CMP50M, CMP50L 72 21 25-000417
Siemens 1FK7032, 1FK7034 72 27 25-000419
1KF7040, 1FK7042 87 37 25-000424
1FK7060 116 47 25-000431
