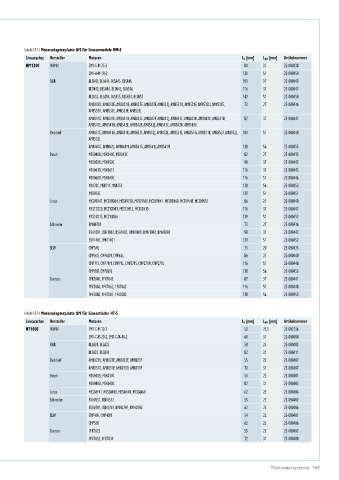

Tabelle 18.15 Motoradapterplatte AM für Linearmodule HM-S
Linearachse Hersteller Motoren L F [mm] L AM [mm] Artikelnummer
HM120S HIWIN EM1-C-M-75-2 80 37 25-000438
EM1-A-M-1K-2 130 51 25-000450
B&R 8LSA43, 8LSA44, 8LSA45, 8LSA46 100 37 25-000443
8LSN43, 8LSN44, 8LSN45, 8LNS46 116 37 25-000447
8LSA53, 8LSA54, 8LSA55, 8LSN54, 8LSN55 142 51 25-000454
AM8032D, AM8032E, AM8032H, AM8033E, AM8033F, AM8033J, AM8531D, AM8531F, AM8532D, AM8532E, 73 27 25-000436
AM8532H, AM8533E, AM8533F, AM8533J
AM8041D, AM8041E, AM8041H, AM8042E, AM8042F, AM8042J, AM8043E, AM8043H, AM8043K, AM8541D, 87 37 25-000441
AM8541E, AM8541H, AM8542E, AM8542F, AM8542J, AM8543E, AM8543H, AM8543K
Beckhoff AM8051E, AM8051G, AM8051K, AM8052F, AM8052J, AM8052L, AM8551E, AM8551G, AM8551K, AM8552F, AM8552J, 100 51 25-000444
AM8552L
AM8061G, AM8061J, AM8061M, AM8561G, AM8561J, AM8561M 138 56 25-000453
Bosch MSK040B, MSK040C, MSK043C 82 27 25-000433
MSK050B, MSK050C 98 37 25-000442
MSK061B, MSK061C 116 37 25-000445
MSK060B, MSK060C 116 51 25-000446
MSK70C, MSK71C, MSK75C 138 56 25-000453
MSK076C 139 51 25-000451
Lenze MCS09D41, MCS09D60, MCS09F38, MCS09F60, MCS09H41, MCS09H60, MCS09L41, MCS09L51 86 27 25-000440
MCS12D20, MCS12D41, MCS12H15, MCS12H35 116 37 25-000447
MCS14D15, MCS14D36 139 51 25-000452
Schneider BMH0703 73 27 25-000436
BSH1001, BSH1002, BSH1003, BMH1001, BMH1002, BMH1003 98 37 25-000442
BSH1401, BMH1401 139 51 25-000452
SEW CMP50L 73 20 25-000435
CMP63S, CMP63M, CMP63L 86 27 25-000440
CMP71S, CMP71M, CMP71L, CMPZ71S, CMPZ71M, CMPZ71L 116 51 25-000448
CMP80S, CMPZ80S 138 56 25-000453
Siemens 1FK7040, 1FK7042 87 37 25-000441
1FK7060, 1FK7062, 1FK7063 116 51 25-000448
1FK7080, 1FK7081, 1FK7083 138 56 25-000453

Tabelle 18.16 Motoradapterplatte AM für Lineartische HT-S
Linearachse Hersteller Motoren L F [mm] L AM [mm] Artikelnummer
HT100S HIWIN EM1-C-M-10-2 50 25,5 25-002736
EM1-C-M-20-2, EM1-C-M-40-2 60 31 25-000404
B&R 8LSA24, 8LSA25 58 25 25-000403
8LSA33, 8LSA34 82 31 25-000411
Beckhoff AM8022D, AM8022E, AM8023E, AM8023F 55 22 25-000402
AM8031D, AM8031F, AM8531D, AM8531F 70 31 25-000407
Bosch MSK030B, MSK030C 54 22 25-000401
MSK040B, MSK040C 82 31 25-000405
Lenze MCS06F41, MCS06F60, MCS06I41, MCS06I60 62 25 25-000406
Schneider BSH0551, BSH0552 55 22 25-000402
BSH0701, BSH0702, BMH0701, BMH0702 62 25 25-000406
SEW CMP40S, CMP40M 54 22 25-000401
CMP50S 62 25 25-000406
Siemens 1FK7022 55 22 25-000402
1FK7032, 1FK7034 72 31 25-000408
