ELECTRAK  GX AC
                                       ®

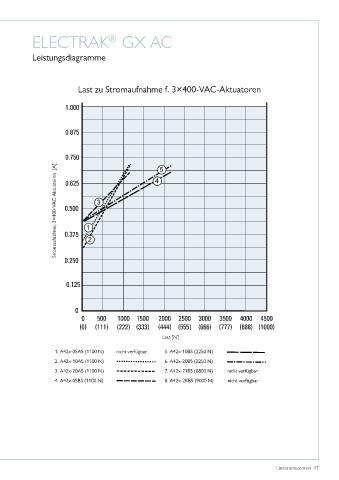

            Leistungsdiagramme





                            Last zu Stromaufnahme f� 3×400-VAC-Aktuatoren
















                     Stromaufnahme, 3×400-VAC-Aktuatoren  [A]  1 2  3  4 5



































                                                          Last [N]

                    1� A42x-05A5 (1100 N)   nicht verfügbar  5� A42x-10B5 (2250 N)
                    2� A42x-10A5 (1100 N)                  6� A42x-20B5 (2250 N)

                    3� A42x-20A5 (1100 N)                  7� A42x-21B5 (6800 N)           nicht verfügbar
                    4� A42x-05B5 (1100 N)                  8� A42x-2KB5 (9000 N)           nicht verfügbar

















                                                                                                  Linearaktuatoren  47
