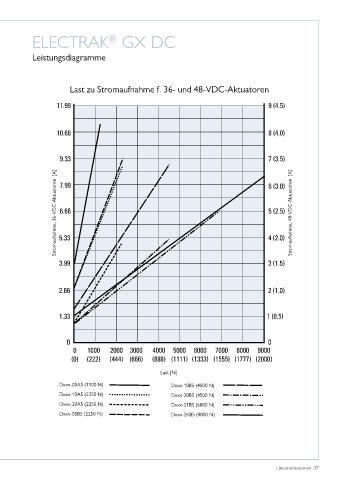

ELECTRAK  GX DC
                                       ®

            Leistungsdiagramme





                          Last zu Stromaufnahme f� 36- und 48-VDC-Aktuatoren

















                     Stromaufnahme, 36-VDC-Aktuatoren  [A]                                             Stromaufnahme, 48-VDC-Aktuatoren  [A]










































                                                         Last [N]

                      Dxxx-05A5 (1100 N)                     Dxxx-10B5 (4500 N)
                      Dxxx-10A5 (2250 N)                     Dxxx-20B5 (4500 N)
                      Dxxx-20A5 (2250 N)                     Dxxx-21B5 (6800 N)
                      Dxxx-05B5 (2250 N)                     Dxxx-2KB5 (9000 N)
