ELECTRAK  GX DC
                                       ®

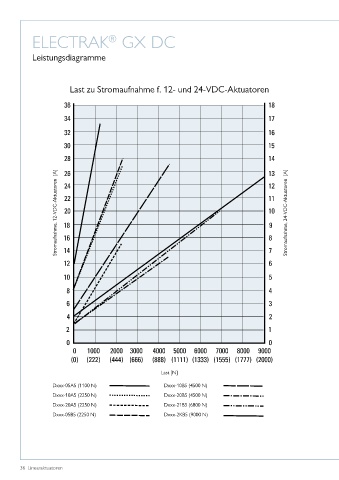

            Leistungsdiagramme





                          Last zu Stromaufnahme f� 12- und 24-VDC-Aktuatoren

















                     Stromaufnahme, 12-VDC-Aktuatoren  [A]                                            Stromaufnahme, 24-VDC-Aktuatoren  [A]










































                                                          Last [N]

                   Dxxx-05A5 (1100 N)                      Dxxx-10B5 (4500 N)
                   Dxxx-10A5 (2250 N)                      Dxxx-20B5 (4500 N)
                   Dxxx-20A5 (2250 N)                      Dxxx-21B5 (6800 N)
                   Dxxx-05B5 (2250 N)                      Dxxx-2KB5 (9000 N)
