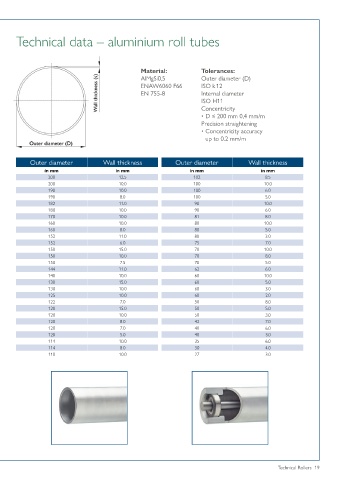

Technical data – aluminium roll tubes

Material: Tolerances:
AlMgSi0,5 Outer diameter (D)
ENAW6060 F66 ISO k 12
EN 755-8 Internal diameter
ISO H11
Concentricity
• D ≤ 200 mm 0,4 mm/m
Precision straightening
• Concentricity accuracy
up to 0.2 mm/m

Outer diameter Wall thickness Outer diameter Wall thickness
in mm in mm in mm in mm
200 12.5 102 8.5
200 10.0 100 10.0
190 10.0 100 6.0
190 8.0 100 5.0
182 11.0 90 10.0
180 10.0 90 6.0
170 10.0 81 8.0
160 10.0 80 10.0
160 8.0 80 5.0
152 11.0 80 3.0
152 6.0 75 7.0
150 15.0 70 10.0
150 10.0 70 8.0
150 7.5 70 5.0
144 11.0 62 6.0
140 10.0 60 10.0
130 15.0 60 5.0
130 10.0 60 3.0
125 10.0 60 2.0
122 7.0 50 8.0
120 15.0 50 5.0
120 10.0 50 3.0
120 8.0 42 7.0
120 7.0 40 6.0
120 5.0 40 3.0
114 10.0 35 6.0
114 8.0 30 4.0
110 10.0 27 3.0
