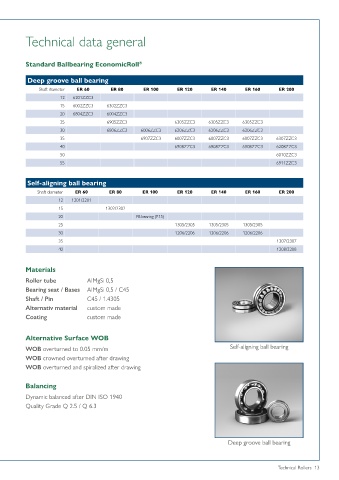

Page 13 - Technical Rollers

Technical data general

Standard Ballbearing EconomicRoll ®

Deep groove ball bearing
Shaft diameter ER 60 ER 80 ER 100 ER 120 ER 140 ER 160 ER 200
12 6201ZZC3
15 6002ZZC3 6302ZZC3
20 6804ZZC3 6004ZZC3
25 6905ZZC3 6305ZZC3 6305ZZC3 6305ZZC3
30 6806ZZC3 6006ZZC3 6206ZZC3 6206ZZC3 6206ZZC3
35 6907ZZC3 6007ZZC3 6007ZZC3 6007ZZC3 6307ZZC3
40 6908ZZC3 6908ZZC3 6908ZZC3 6208ZZC3
50 6010ZZC3
55 6911ZZC3

Self-aligning ball bearing

Shaft diameter ER 60 ER 80 ER 100 ER 120 ER 140 ER 160 ER 200
12 1201/2201
15 1302/2302
20 FB bearing (P.15)
25 1305/2305 1305/2305 1305/2305
30 1206/2206 1206/2206 1206/2206
35 1307/2307
40 1208/2208

Materials

Roller tube AIMgSi 0,5
Bearing seat / Bases AIMgSi 0,5 / C45
Shaft / Pin C45 / 1.4305
Alternativ material custom made
Coating custom made

Alternative Surface WOB

WOB overturned to 0.05 mm/m Self-aligning ball bearing
WOB crowned overturned after drawing
WOB overturned and spiralized after drawing

Balancing
Dynamic balanced after DIN ISO 1940
Quality Grade Q 2.5 / Q 6.3

Deep groove ball bearing
