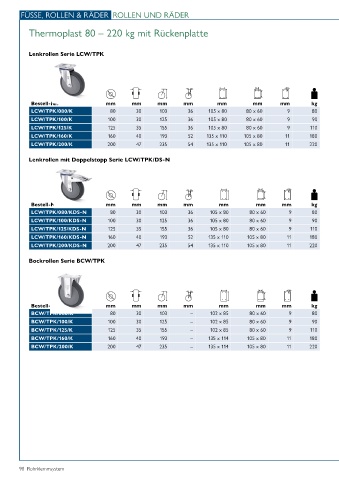

FÜSSE, ROLLEN & RÄDER ROLLEN UND RÄDER
Thermoplast 80 – 220 kg mit Rückenplatte
Lenkrollen Serie LCW/TPK
Bestell-Nr. mm mm mm mm mm mm mm kg
LCW/TPK/080/K 80 30 103 36 105 x 80 80 x 60 9 80
LCW/TPK/100/K 100 30 125 36 105 x 80 80 x 60 9 90
LCW/TPK/125/K 125 35 155 36 105 x 80 80 x 60 9 110
LCW/TPK/160/K 160 40 193 52 135 x 110 105 x 80 11 180
LCW/TPK/200/K 200 47 235 54 135 x 110 105 x 80 11 220
Lenkrollen mit Doppelstopp Serie LCW/TPK/DS-N
Bestell-Nr. mm mm mm mm mm mm mm kg
LCW/TPK/080/KDS-N 80 30 103 36 105 x 80 80 x 60 9 80
LCW/TPK/100/KDS-N 100 30 125 36 105 x 80 80 x 60 9 90
LCW/TPK/125/KDS-N 125 35 155 36 105 x 80 80 x 60 9 110
LCW/TPK/160/KDS-N 160 40 193 52 135 x 110 105 x 80 11 180
LCW/TPK/200/KDS-N 200 47 235 54 135 x 110 105 x 80 11 220
Bockrollen Serie BCW/TPK
Bestell-Nr. mm mm mm mm mm mm mm kg
BCW/TPK/080/K 80 30 103 – 102 x 85 80 x 60 9 80
BCW/TPK/100/K 100 30 125 – 102 x 85 80 x 60 9 90
BCW/TPK/125/K 125 35 155 – 102 x 85 80 x 60 9 110
BCW/TPK/160/K 160 40 193 – 135 x 114 105 x 80 11 180
BCW/TPK/200/K 200 47 235 – 135 x 114 105 x 80 11 220
